IPPC-1901T2 19" Industrial Touch Panel PC I3 I5 I7 U Series CPU Motherboard for Selection

Name: IPPC1901T2 19quot Industrial Touch Panel PC I3 I5 I7 U Series CPU Motherboard for Selection
Brand: Yanyue
Price: 1 USD

Buy cheap IPPC-1901T2 19" Industrial Touch Panel PC I3 I5 I7 U Series CPU Motherboard for Selection product

Brand Name : Yanyue

Model Number : IPPC-1901T2

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month

Delivery Time : According to Quantity

Packaging Details : Wooden Box

Name : Industrial Touch Panel PC

Adapt motherboard : Board paste MINI-ITX motherboard for low power U-series CPUs

Touch screen : 5-wire resistance screen

CPU/GPU : Intel i5 3317U

Memory : 4G DDR3

Hard disk : 128G MSATA

Contact Now

IPPC-1901T2 19" Touch Industrial Panel PC with I3/I5/I7 U Series CPU Motherboard for Selection

Features:

■ Aluminum alloy wire drawing panel; IP65 waterproof grade of panel

■ Low Power U Series I3/I5/I7 CPUs

■ 10 DB9 serial ports, which can easily lead out multiple serial ports.

■ One slot can be used to extract serial port or parallel port or USB

■ Standardized Dual Network 6 Series 4 USB

■ Various installation options

■ Resistance Touch Screen, OEM Capacitance Screen

Specification parameters				Optional configuration
Front panel	Aluminum alloy panel, black oxide by wire drawing			Optional natural color or other color, optional sandblasting treatment
Back chassis	1.2mm steel plate, black			Optional silver or other colors
Adapt motherboard	Board paste MINI-ITX motherboard for low power U-series CPUs			Board paste J1900 and I3/I5/I7 U series CPU motherboard
LCD screen	19"TFT, LED backlight; Resolution 12801024; Lattice: 0.2970.297; Maximum color: 16.2M; Brightness: 300cd/; Contrast: 1500:1; Response speed: 35ms; MTBF: 50,000h Visual angle: (+85 -85) (+85 -85);
Touch screen	5-wire resistance screen			Customizable Capacitance Screen
CPU/GPU	Intel i5 3317U			J1900 and I3/I5/I7 U CPUs of Generation 3, 4, 6 and 7
Memory	4G DDR3			Optional 2G/8G/16G DDR3 notebook memory
Hard disk	128G MSATA			Optional 32G/64G/256G Msata solid state hard disk; 2.5 "500G/1T/2T mechanical hard disk and 512G/1T solid state hard disk
Interface	DC input; 4USB; 2RJ45 (gigabit); VGA; HDMI, audio output; MIC input; 6COM; 1 slot; 10DB9			Customize 6USB or 10COM or 1LPT, customize plug-in or Phoenix terminal DC input, and customize wide-voltage input.
Extension	One slot is used to draw more serial ports, parallel ports or USB ports.
Size	477mm (length)* 390mm (width)* 98mm (thickness)			Weight	7/8KG
Industrial Power Supply	250W Industrial 1U Power Supply
Installation mode	Embedded screw installation; Embedded hook installation; VISA wall mounting installation
Work and Environment
Working temperature	0～60℃	Storage temperature	-40～75℃	Environmental humidity	0~90% air humidity, no condensation
IP Level	Panel IP65	Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Shock	10g acceleration, 11ms duration

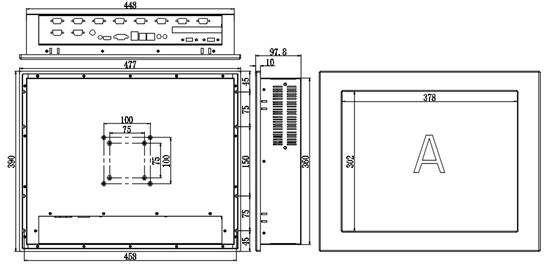

Installation Dimension Diagram
